B767-300ER
Aircraft
Name
767-200ER
Manufacturer
Body
Wide
Wing
Fixed Wing
Position
Low wing
Tail
Regular tail, mid set
WTC
H
APC
D
Type Code
L2J
RFF Category
7
Engine
Jet
Engine Count
Multi
Position
Underwing mounted
Landing gear
Tricycle retractable
Manufactured as
BOEING KC-767
BOEING 767-200
B762

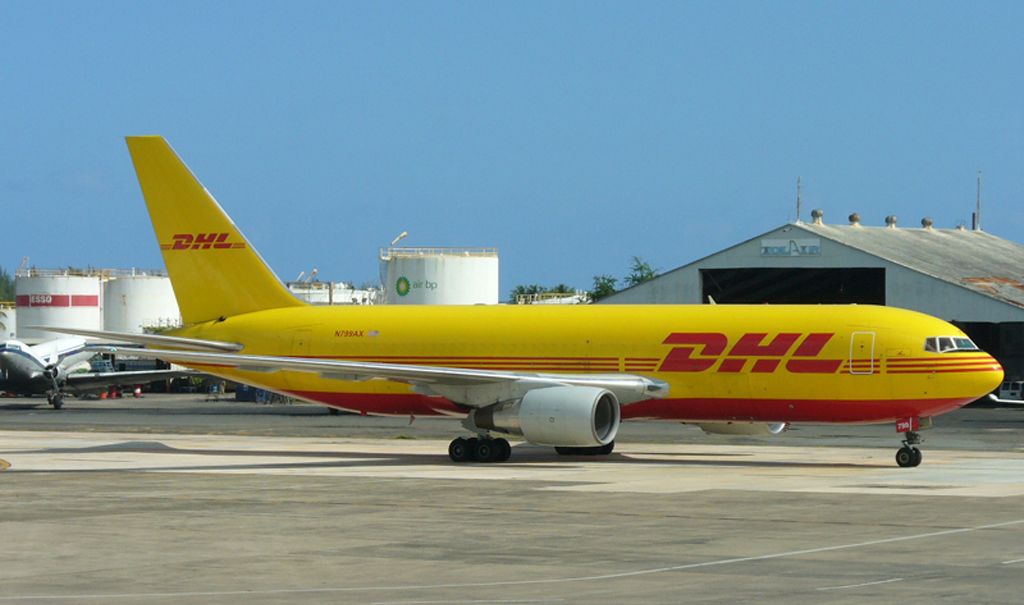

Medium to long range wide-body airliner. In service since 1982 (200ER since 1984). Tandem development with 757. Exists in an ER (extended range) version for Extended Range Twin Engine Operation
The B762 is member of the B767 family of aircraft.
Technical Data
Wing span (metric)
47.60 m
Length (metric)
48.50 m
Height (metric)
15.90 m
Powerplant
2 x P&W PW4062 (281.6 kN) or
2 x GE CF6-80C2B7F (276.2 kN).
Engine Model(s)
General Electric CF6
Pratt & Whitney PW4000
Indicative Performance Data
Take-Off
V2
160 kts
Distance
2700 m
MTOW
179170 kg
Initial Climb (to 5000 ft)
IAS
190 kts
ROC
2000 ft/min
Initial Climb (to FL150)
IAS
290 kts
ROC
2500
Initial Climb (to FL240)
IAS
290 kts
ROC
1400 ft/min
MACH Climb
MACH
0.78
ROC
1500 ft/min
Cruise
TAS
470 kts
MACH
0.80
Ceiling
430
Range
6600 NM
Initial Descent (to FL240)
MACH
0.78
ROD
2000 ft/min
Descent (to FL100)
IAS
290 kts
ROD
1600 ft/min
Descent (FL100 & below)
IAS
n/a
MCS
220 kts
ROD
n/a
Approach
Vapp (IAS)
135 kts
Distance
1500 m
