SMTP Analysis

SMTP stands for Simple Mail Transfer Protocol

It is one of the most popular protocols, which is used for electronic mail transfer.

As it is very common and almost every computer user has at least one email address, SMTP traffic is full of unsolicited messages (spam). There are many negative aspects connected with the spam like excessive advertising, harassment and bandwidth consumption, just to name a few. Moreover, it is commonly used for phishing campaigns and malware spreading.

In order to counteract, many spam detection methods were developed. These were mainly based on message contents (both text and files), blacklisting and network specific characteristics (for example frequency of TCP connections).

Nowadays, huge amount of spam is transmitted by botnets.

These can for example send spam directly to the destination mail server or by using open relay SMTP servers.

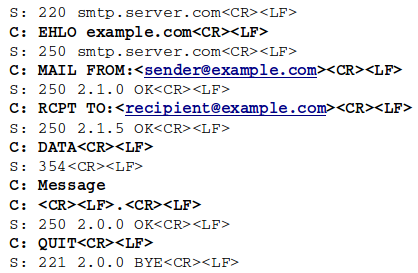

In simple words, SMTP message transfer can be described as a conversation between client and the server. Some commands have to be exchanged between them, in order to deliver a message from the sender to the recipient. Typical process of the email transfer is presented below.

Every command has to be finished with <CR><LF> line terminators. We can distinguish several commands:

• EHLO (or HELO for non-extended SMTP) – command used for client introduction.
• MAIL FROM – command used for sender specification.
• RCPT TO – command used for recipient specification.
• DATA – command used for declaration of the message.

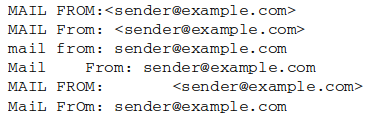

Now, we have a little quiz for you — what would the SMTP server do, if we would like to type the MAIL FROM command in a different manner? Several examples of different notations have been provided below.

The answer is: it will accept every command. From the server’s point of view, all of the above mentioned MAIL FROM commands are appropriate and they should be parsed properly. According to that, several conclusions concerning MAIL FROM command notation can be highlighted: it is case insensitive, at some points amount of whitespaces is irrelevant and some special characters are optional. We can easily notice that SMTP implementations may vary because of the simple change in command syntax. Moreover, some additional commands like RSET may appear during an SMTP conversation and the command order will turn out to be different. Another example is the usage of the QUIT command, which is optional.

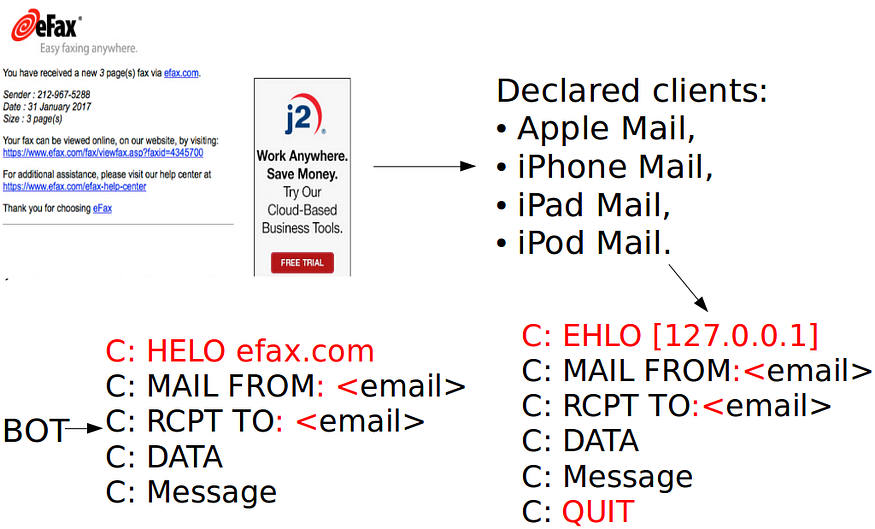

Now, let us take a look into a real example. Some time ago, the Sendsafe botnet was responsible for the malicious Hancitory/Pony eFax malspam campaign (some details concerning this campaign can be read in a great post from malware-traffic-analysis.net). In the majority of the messages, Sendsafe claimed to be sending emails using Apple devices. Let us take a look into details of the Sendsafe SMTP dialect and Apple devices dialect.

eFax screenshot reproduced from malware-traffic-analysis.net

There are three main differences between these two dialects:

• Sendsafe uses non-extended SMTP (HELO) together with the domain, whereas Apple devices use extended SMTP (EHLO) together with the IP address.
• Sendsafe places the space character between : and <, whereas Apple devices do not.
• Sendsafe interrupts the TCP session just after message delivery, whereas Apple devices send the QUIT command before the session ends.

Clearly, it is an example of the successful attempt of email client spoofing, which was spotted in the wild. The Sendsafe dialect and Apple’s one have significant differences.

To sum up, the analysis of SMTP dialects can be used effectively for both spam mitigation and botnet fingerprinting. Our extensions for the already developed method have proven to even increase effectiveness of this analysis. During the SISSDEN project, we have fully implemented the above mentioned method with many mechanisms, which allows us to perform spam detection and botnet fingerprinting operations online. Moreover, we have our own SMTP dialects database, which is constantly updated. In future posts, we are going to post some facts about spam botnet fingerprinting and observed spam campaigns.
