TYKO NI-CU-PGE PROJECT

About Tyko Ni-Cu-PGE Project

The Tyko Ni-Cu-PGE project, is located ~65km northeast of Marathon Ontario, Canada. Tyko is an early stage, high sulphide tenor, nickel focused project with the most recent drill hole intercepts returning up to 1.06% Ni over 6.22 m including 4.71% Ni over 0.87m in hole TK-16-010

Previous work indicates high potential for Voisey- style feeder dyke Ni-Cu-PGE mineralization. The Tyko Property is located in Ontario’s highly prospective Mid-Continent Rift Nickel Province with road and trail access and power and rail infrastructure close by.

The Palladium One team is a highly experienced group of finance and technical professionals who have discovered, financed and built mines.

Location

• North Western Ontario, 25km north of the Hemlo mining complex.
• Road and trail access.
• 11.2 km2 Claim package
• Powerlines to the south, Rail lines to the north.
• Mining friendly jurisdiction

Winter 2016 Drill Program

14 drillholes for a total of 1,780m of drilling. Expands historic showings with best grades and lengths of Ni/Cu/PGE grades to date.

Most recent results expanding Tyko Showings with Significant intercepts included:

Building on Historic Drilling at Tyko North (RJ) Showing

• TK-16-006: 13.4m=1.03% Ni, 0.55 Cu%, 0.75ppm PGM+Au
• TK-16-010: 6.2m=1.06% Ni, 0.35 Cu%, 0.65ppm PGM+Au
• TK-16-011: 6m =1.47% Ni, 0.49 Cu%, 0.71ppm PGM+Au

And the Tyko showing

• 4.14 m of 1.09% Ni, 0.77% Cu, 0.42 g/t Pt, 0.42 g/t Pd (TK-06-01)

• Working to connect the two deposits, (1.6km separation)

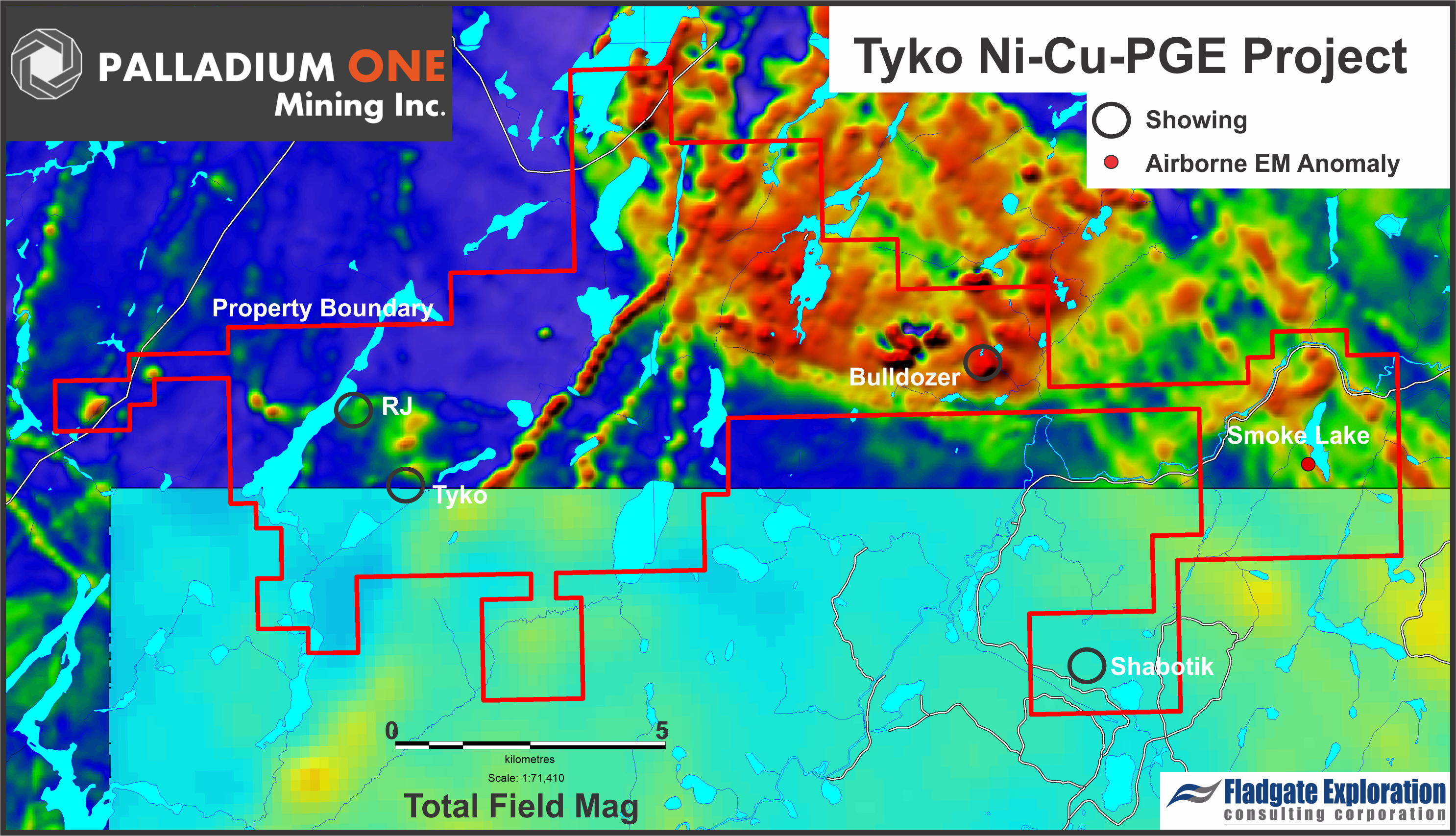

• Testing a number of new VTEM and Magnetic survey targets

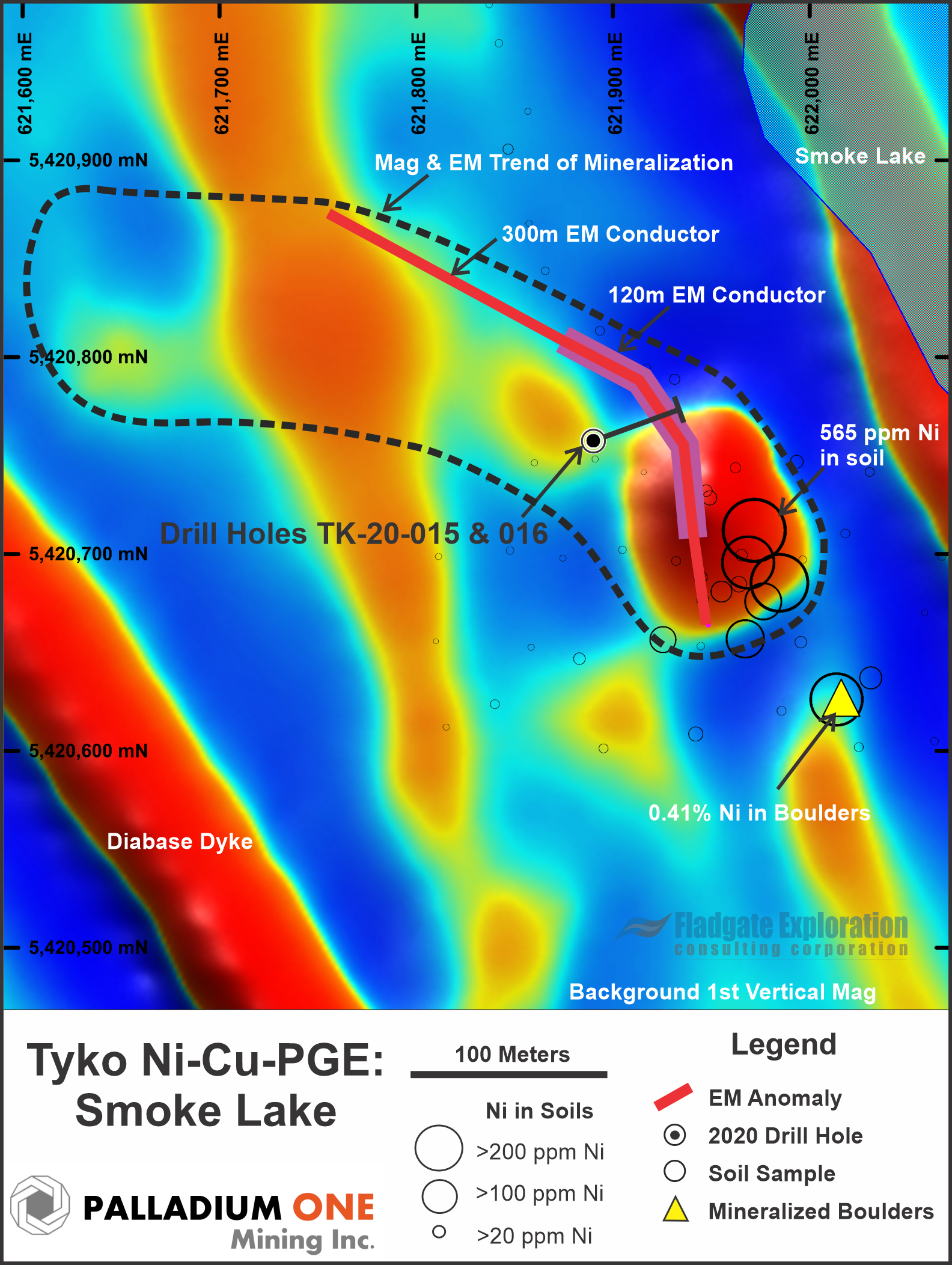

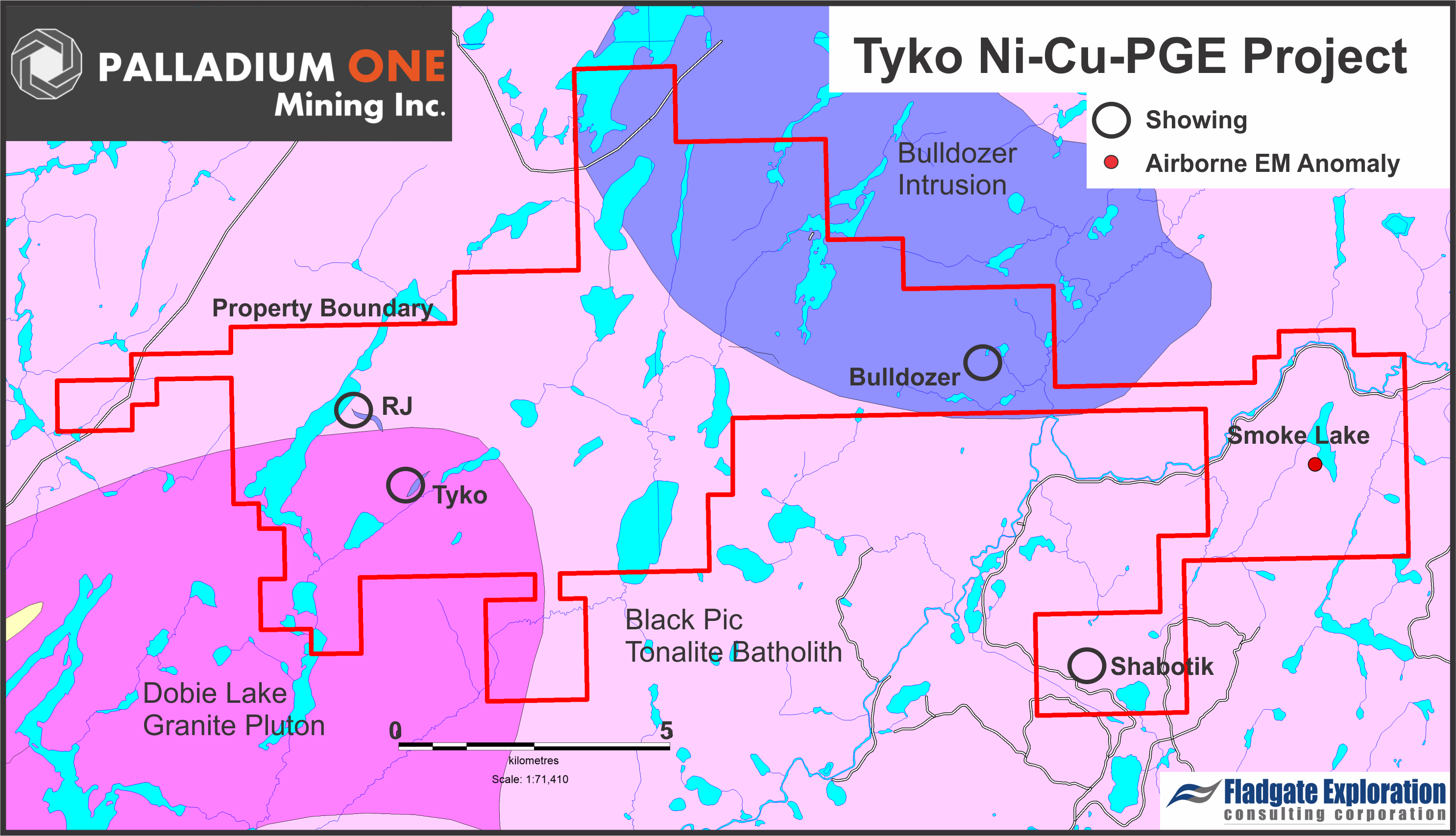

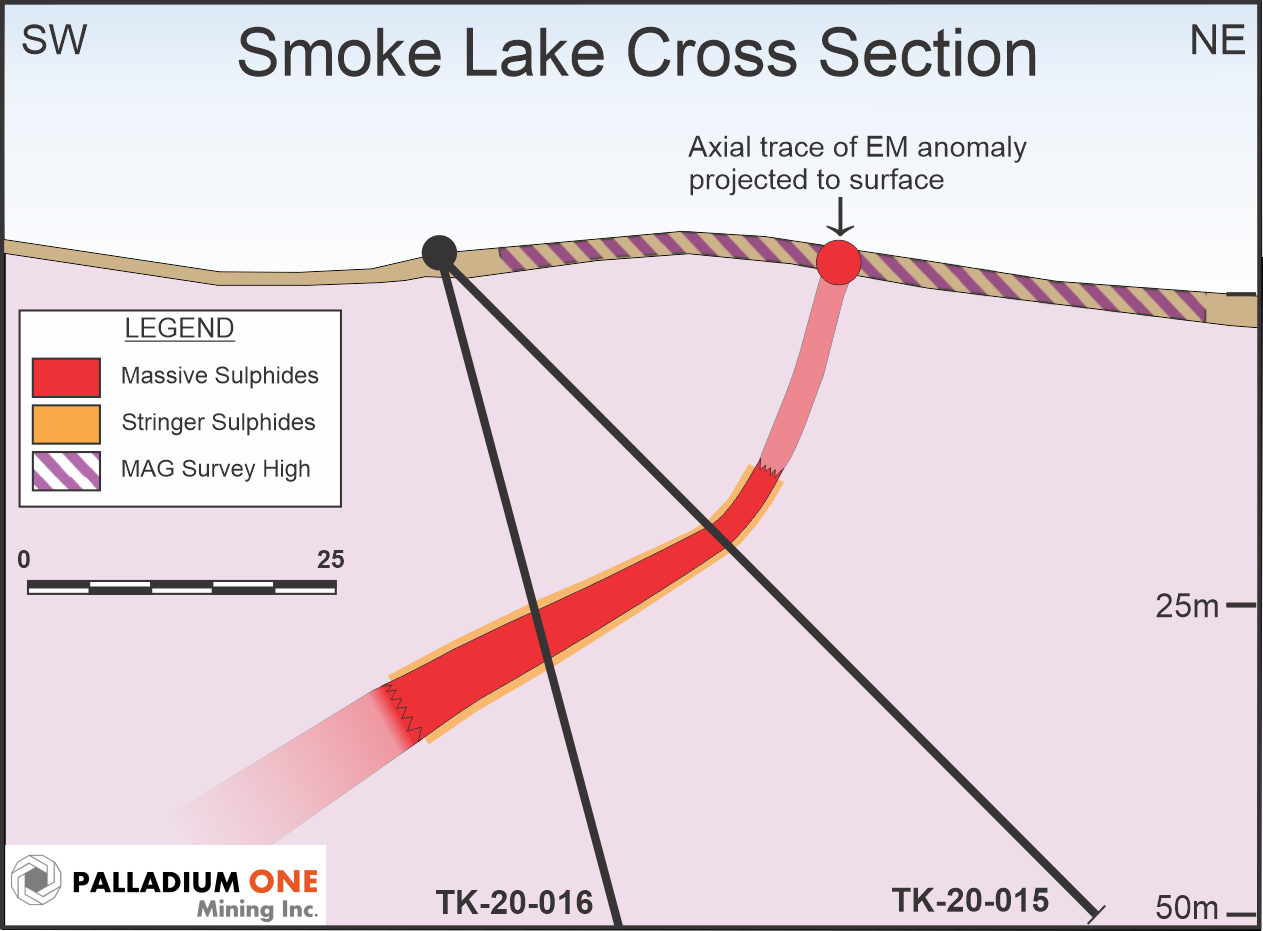

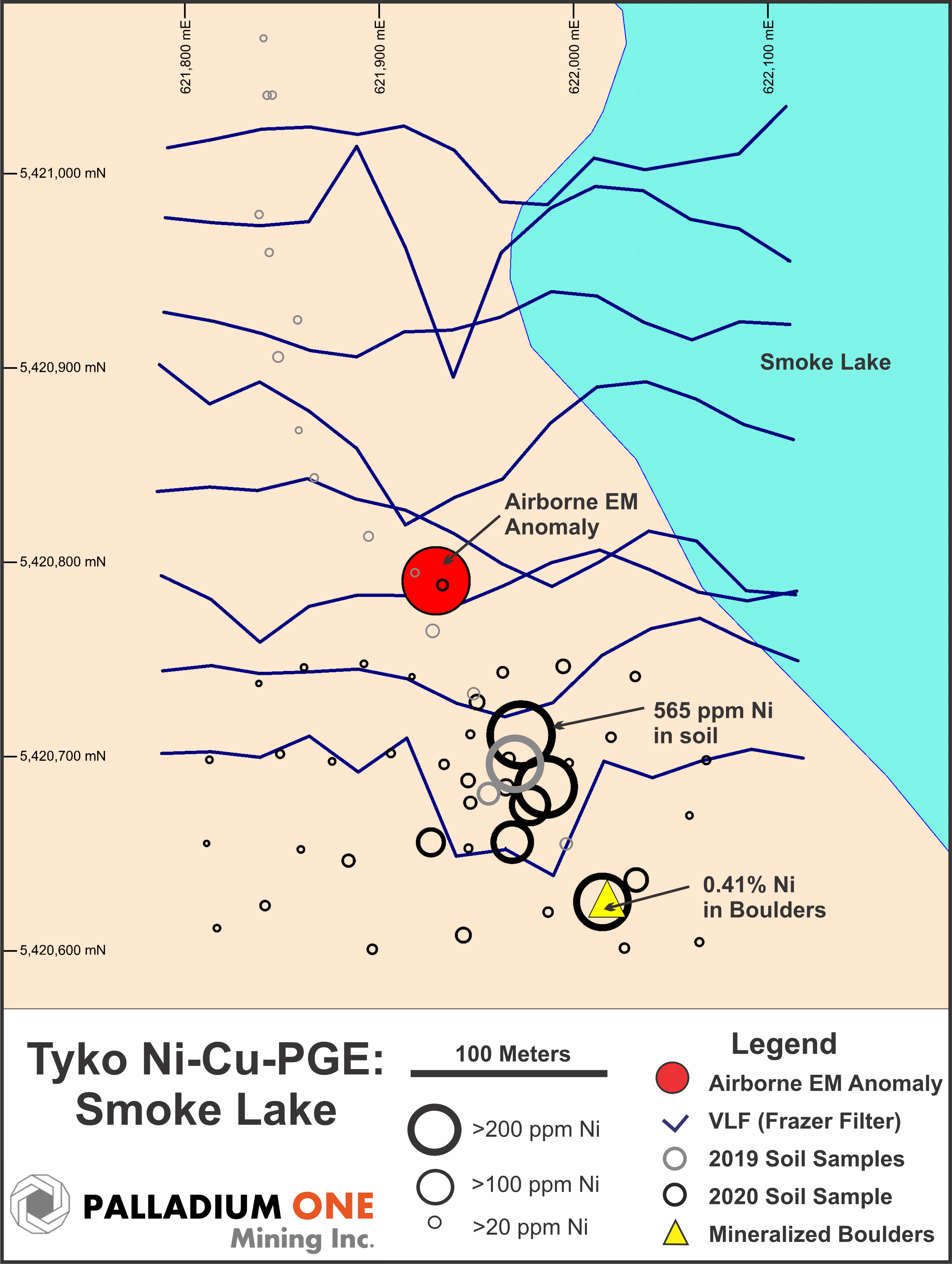

Maps
