CHAPEL ISLAND PROPERTY

PROJECT OVERVIEW

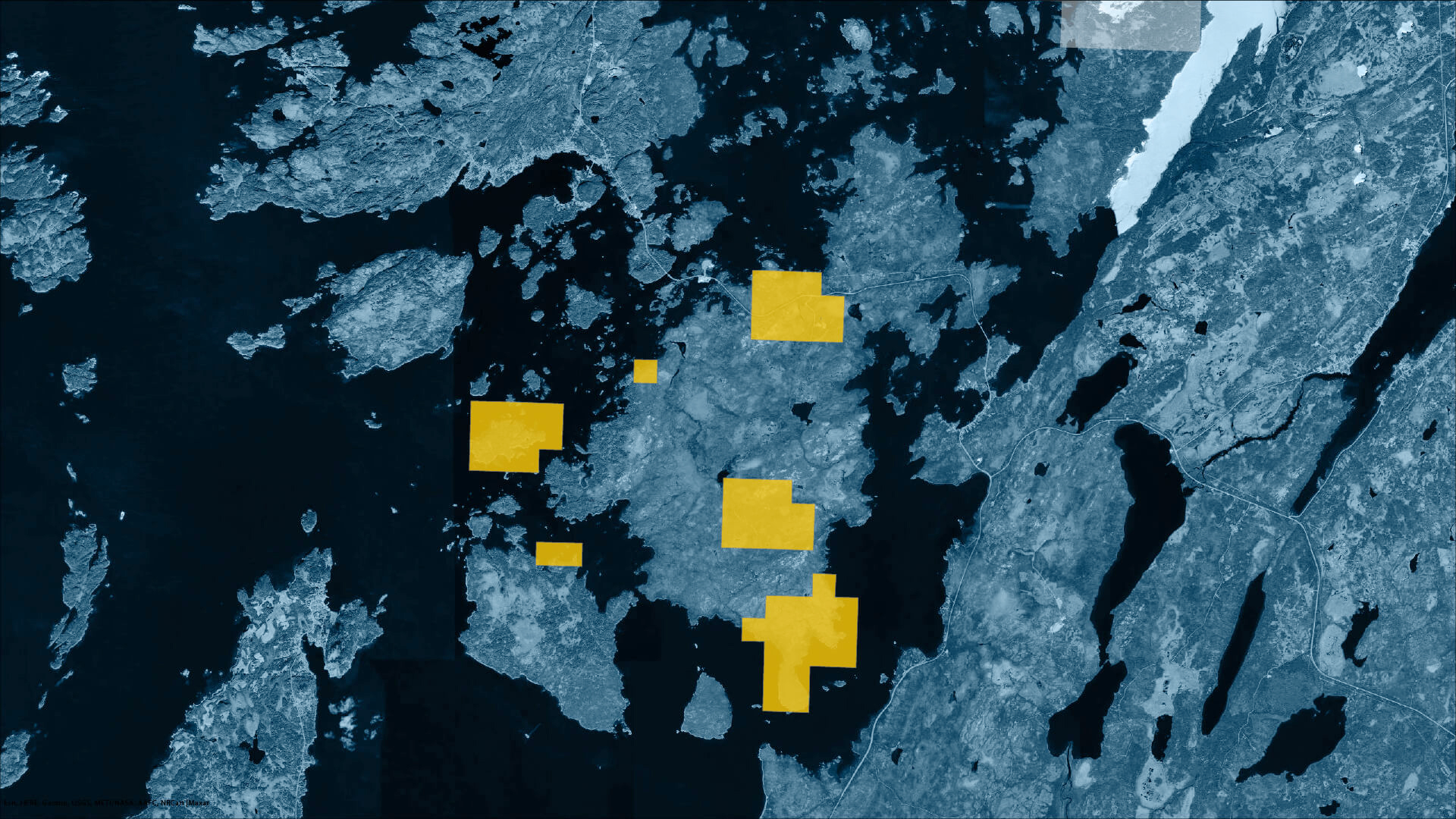

The Chapel Island property is located on Chapel Island in northeast-central Newfoundland and is situated within the Dunnage tectonostratigraphic zone of the Appalachian Orogen (Williams et al, 1988). Rocks of the Dunnage tectonostratigraphic zone originally developed in the Iapetus Ocean between the Precambrian sialic crust of the Laurentian and Gondwanan cratons (O’Brien, 2003). The rocks consist of ophiolitic, volcanic, volcaniclastic and sedimentary rocks of island arc and back arc affinity which record the formation, development and subsequent destruction of the proto-Atlantic Iapetus Ocean.

KEY ADVANTAGES

The Dunnage Zone is divided by the Red Indian Line into two subzones, namely the Notre Dame and Exploits Subzones (Williams et al, 1988). The Notre Dame Subzone has a Laurentian affinity and the Exploits Subzone has a Gondwanan affinity.

The Chapel Island property is located within the Early Paleozoic Exploits Subzone, proximal to the Red Indian Line, which is dominated by sedimentary successions with lesser volcanic assemblages (Williams, 1995). Chapel Island lies northwest of the adjacent northeast trending Reach Fault, north of the adjacent Loon Bay batholith and southeast of the proximal Red Indian Line.

Rocks east of the Reach Fault are included in the Silurian Botwood Group comprised of terrestrial volcanic and sedimentary rocks (Evans, 1996), and the Late Ordovician to Early Silurian Badger Group comprised of marine sedimentary rocks. Rocks to the west of the Reach Fault, and underlying most of the property, include the Middle Ordovician Coaker Porphyry unit, a porphyritic felsic intrusive, and the Middle Ordovician and younger Dunnage Melange.

The Dunnage Melange is a chaotic unit consisting of a heterogeneous sedimentary matrix, lacking consistent bedding and supporting a large number of clasts and blocks that are heterogeneous in lithology and distribution (Lorenz, 1984). To a much lesser extent, a mafic intrusive, the Middle Ordovician Puncheon Diorite, is also present.

The Road Zone consists of four showings called the Road Cut showings (Road Cut #1, #2, #3 and #4 showings) containing numerous Au occurrences. The showings occur in mafic dykes, Coaker porphyry, volcanics (?), quartz veins and calcite veins. These occurrences have returned individual assay results up to 10.3 g/t Au, 32.9 g/t Ag, 2.36% Cu, 0.43% Zn, 783 ppm Pb and 311 ppm Ni from grab samples. Historical samples from the Roadcut showings have assayed up to 85g/t Au, 27g/t Au, 12g/t Au and 8% Cu.
