HERBERT GOLD PROJECT

The Herbert Gold project is an exploration stage, partially drill-tested, high-grade, gold mineralized mesothermal quartz vein system in the historic Juneau Gold Belt of southeast Alaska. Consisting of 91 unpatented lode claims located 25 km north of Juneau and to the south of Couer Alaska's profitable Kensington gold mine. The property covers six parallel vein structures exposed at surface.

On May 12, 2021, the company announced an updated Mineral Resource estimate using a base case mineral resource cut-off grade of 3.00 grams per tonne gold (gpt Au) capped at 125 gpt and consists of:

Additional key facts and information about our Herbert Gold Property include:

Highlights from the 2020 program include:

Deep Trench Vein

15.27m of 37.07 g/t gold

8.08 m of 59.91 g/t gold

11.58m of 28.41 g/t gold

Main Vein

3.05m of 72.3 g/t gold & 96.9 g/t silver

3.04m of 1,328 g/t silver and 3.42 g/t gold including .93m of 4,010 g/t silver, 7.75 g/t gold

6.46 m of 21.55 g/t gold Goat Creek vein

9.08m of 30.24 g/t gold

2.81m of 15.76 g/t gold For more information on the latest drill results, visit the Company’s news release page

In 2010, GPG completed detailed geologic mappings and analysis of aerial photographs over the southern two-thirds of this mineral rich property. Preliminary geologic studies and diamond core drilling identified major elements of an impressive complex Mesothermal gold-quartz system with numerous targets. In 2011, the Company drilled 30 holes from eight platforms. The results were most encouraging with numerous multi-ounce gold assays returned from multiple veins. (please see the Company's news releases for more information).

Maps

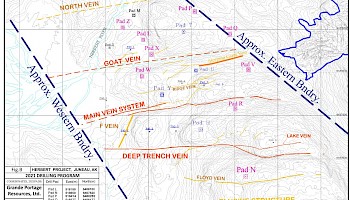

2021 Drill Map

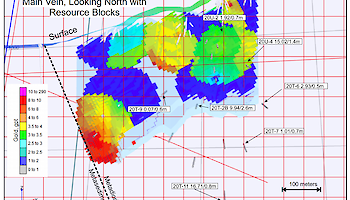

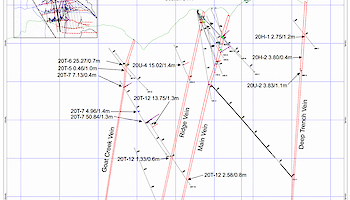

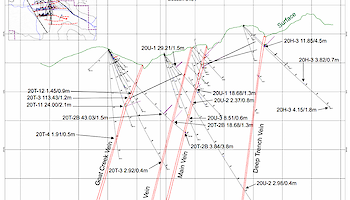

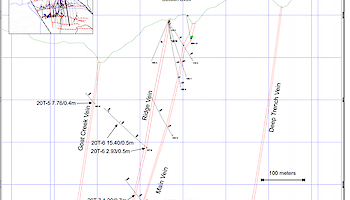

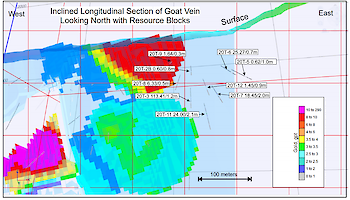

2020 Herbert Gold Project Drilling. Longitudinal and Vertical Cross Sections

2020 Herbert Gold Project Drilling. Longitudinal and Vertical Cross Sections

2020 Herbert Gold Project Drilling. Longitudinal and Vertical Cross Sections

2020 Herbert Gold Project Drilling. Longitudinal and Vertical Cross Sections

2020 Herbert Gold Project Drilling. Longitudinal and Vertical Cross Sections

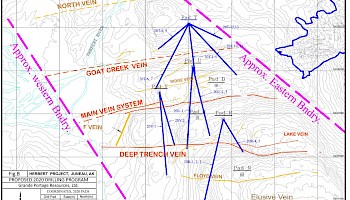

2020 Drill Program Map - December 2020

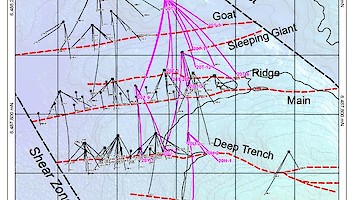

2020 Herbert Gold Project Drill Map

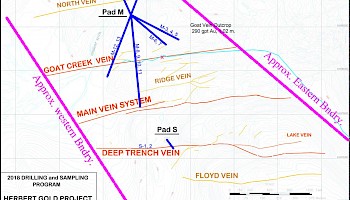

2018 Drill Area

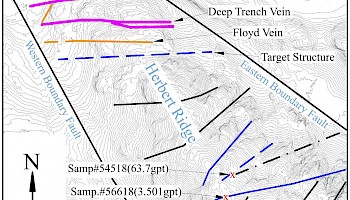

LiDar Survey Herbert Ridge Sampling
