THORN PROJECT

The Thorn Project hosts a district scale Paleocene-Cretaceous-Triassic-Jurassic, volcano-plutonic complex and related sedimentary units with several styles of mineralization related to porphyry and epithermal environments.

Location

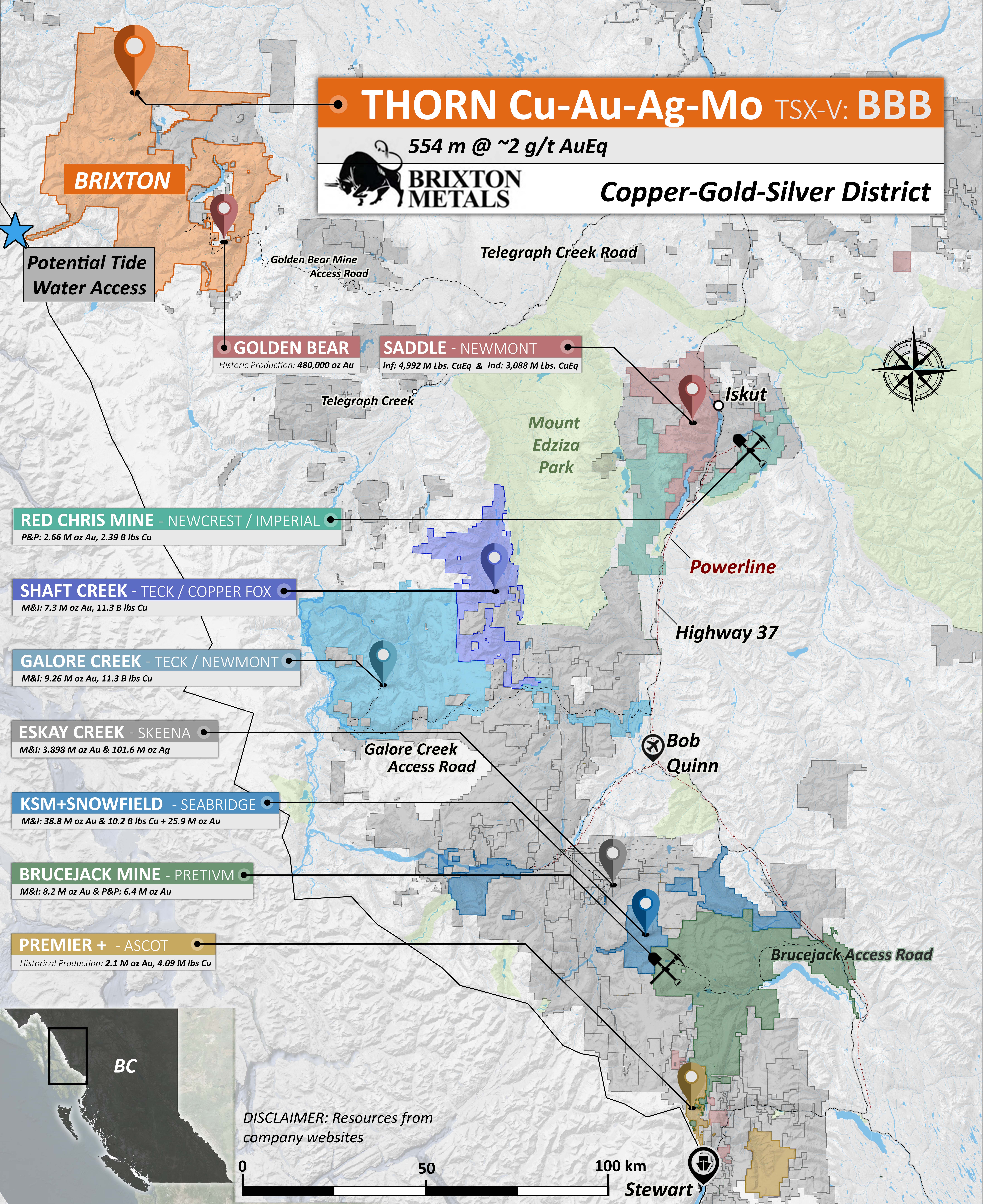

The wholly-owned 2,600 square kilometres Thorn Project is located in northwestern British Columbia (northern tip of the “Golden Triangle”), Canada, approximately 90 km northeast of Juneau, AK. The southern limit of the Thorn claim boundary is roughly 50 km from tide water.

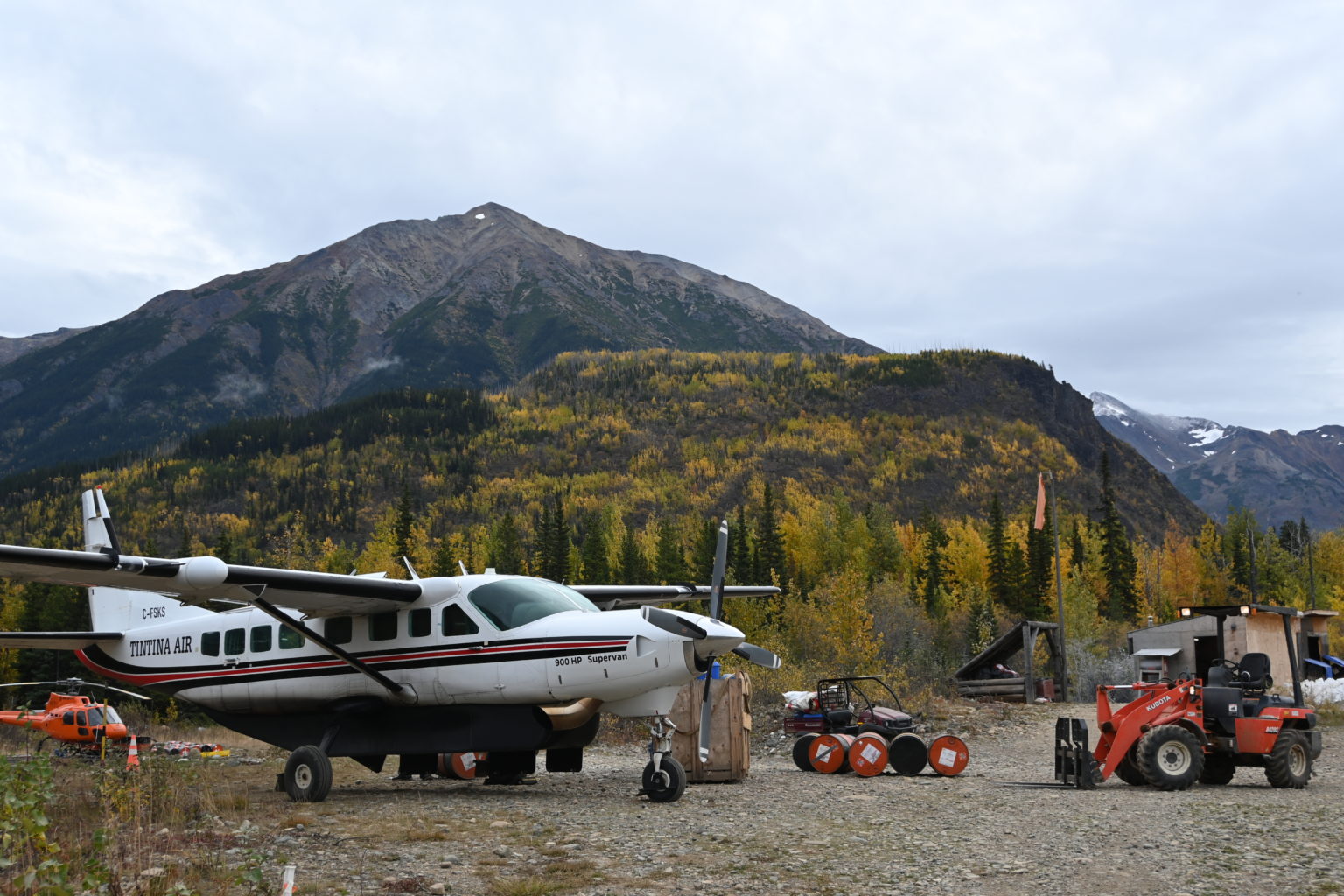

Thorn is relatively accessible from Vancouver. A commercial flight to Whitehorse, Yukon departing in the morning allows for transfer to a fixed wing aircrafts, which can land on the airstrip at the property by early afternoon. Access around the property is supported by helicopter from the well-established Thorn Camp.

2021, THORN

18 Jan at 6:14 am

Brixton Metals Taps Porphyry at Camp Creek, Drilling 439m 0.34% CuEq, including 278m of 0.43% CuEq, including 105m of 0.60% CuEq with the bottom of the hole at 6.2m of 2.27% CuEq at its Thorn Project

2020, THORN

15 Dec 2020

Brixton Metals Significantly Increases the Number of Cu-Au Targets at its Thorn Project: 81 rock samples return over 1 g/t Au and 68 rock samples return over 1% Cu

2020, THORN

1 Dec 2020

Brixton Metals Discovers New Gold Zone at Outlaw West and Expands the Central Outlaw Zone at its Thorn Project

Geology

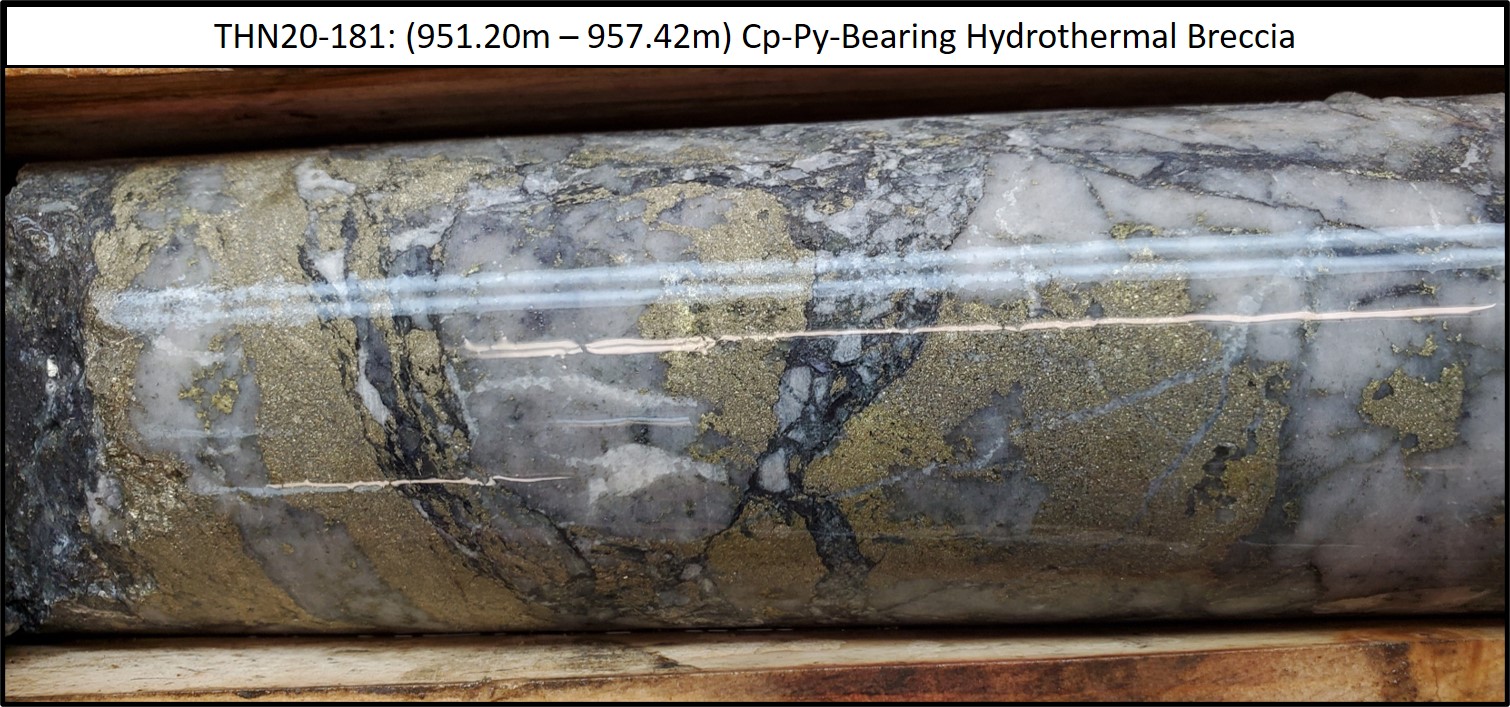

Mineralization

Property History

The earliest known work on the Thorn property was carried out by Kennco in 1959 as part of a regional exploration program. Including work from Brixton since 2011, a total of 31,070 soils, 8,185 rocks and 1,203 stream sediment samples have been taken on the property. Geophysical work includes 65 line-kilometres of induced polarization, 9 line-kilometres of MT, 467 line-km of airborne EM, 80 square kilometres of airborne radiometrics and 200 square kilometres of airborne magnetics. 768 square kilometres of LIDAR surveys were completed and property-wide ASTER-SENTINAL 2 data was acquired. 40,000 m of diamond drilling to date among 220 drill holes.
