PULACAYO PROJECT
Silver Elephant Mining Corp. on October 13, 2020 announced the results of a National Instrument 43-101 (“NI43-101”) compliant Mineral Resource Estimate for the Pulacayo silver-lead-zinc project (“Pulacayo Project”) in Bolivia. The Pulacayo Project consists of the Pulacayo Deposit and Paca Deposit (7km north of Pulacayo deposit). The project is 107 km northeast of Sumitomo Corporation’s San Cristobal silver mine, 171 km southwest of New Pacific’s Silver Sands discovery, and 139 km north of Pan American Silver Corp.’s San Vicente silver mine.
Bolivia Map
[
](https://www.silverelef.com/wp-content/uploads/2021/03/Pulacayo_22.March_.21-03.png)

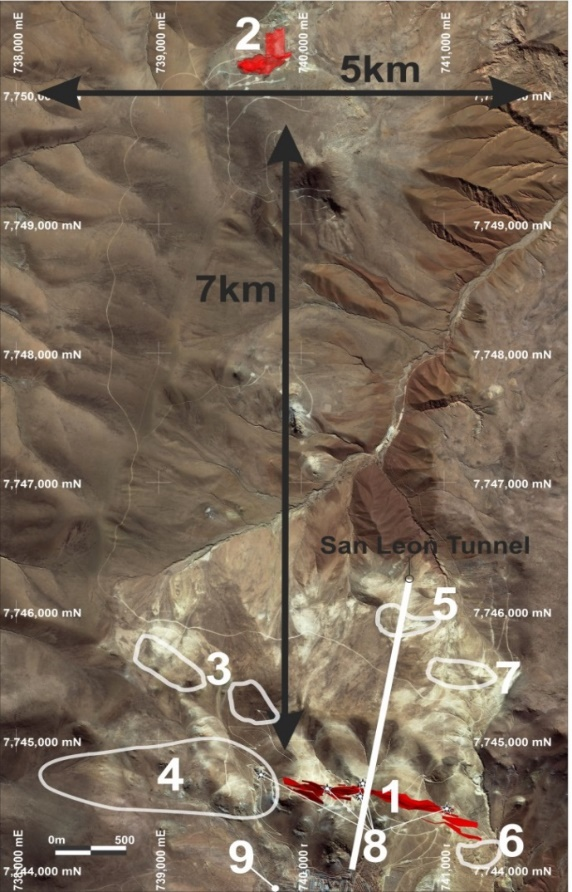

Pulacayo District Map
- 1. Pulacayo (68,000 m drilled)
- Paca (18,000 m drilled)
- El Abra Target (Mineralized breccias)
- Pulacayo West (Tajo Vein extension)
- Pacamayo (Vein system in andesite porphyry)
- Pero Stockwork (Mineralized sediments)
- Pacamayo East (Argillic alteration in volcanic rocks)
- 5 shafts – 3 extend over 700m depth
- Two-lane Paved Highway 3-7 are exploration targets with insufficient exploration
to define a mineral resource
The Mineral Resource Estimate has an effective date of October 13, 2020 and includes an Indicated Mineral Resource of 106.7 million oz of silver, 1,384.7 million pounds of zinc, and 693.9 million pounds of lead, and an Inferred Mineral Resource of 13.1 million oz of silver, 122.8 million pounds of zinc and 61.9 million pounds of lead. Silver Elephant’s wholly owned Bolivian subsidiary has invested over US$30 million at the Pulacayo Project since 2006.
The Mineral Resource Estimate was prepared by Mercator Geological Services Limited (“Mercator”) under supervision of Matthew Harrington, P. Geo., who is an independent Qualified Person as defined under NI 43-101. A contained metal summary based on the Mineral Resource Estimate for the Pulacayo Project is reported below in Mineral Resources were prepared in accordance with NI 43-101, the CIM Definition Standards (2014) and CIM MRMR Best Practice Guidelines (2019). Technical report available on www.sedar.com.
| Deposit | Category | k Tonnes | Ag Moz | Zn Mlb | Pb Mlb | AgEq moz | % Reported Ag |
|---|---|---|---|---|---|---|---|
| Pulacayo | Indicated | 26,350 | 70.2 | 904 | 386.0 | 133 | 64% |
| Inferred | 1,670 | 7.2 | 72 | 18 | 11 | 11 | 11 |
| Paca | Indicated | 21,690 | 37.0 | 486 | 304 | 70 | 36% |
| Inferred | 3,395 | 6.0 | 51 | 44 | 9 | 9 | 9 |
| Total | Indicated | 48,040 | 107.0 | 1,385 | 690 | 209 | 89% 11% |
| Inferred | 5,065 | 13.0 | 123 | 62 | 22 | 22 | 22 |
| Zone | Category | k Tonnes | Ag Moz | Zn Mlb | Pb Mlb | AgEq moz | % Reported Ag |
|---|---|---|---|---|---|---|---|
Open Pit Constrained | Indicated | 47,380 | 101 | 1,365 | 688 | 202 | 91% |
| Inferred | 4,165 | 8 | 80 | 54 | 14.3 | 14.3 | 14.3 |
| Out-of-Pit | Indicated | 660 | 5.7 | 20 | 6 | 6.5 | 9% |
| Inferred | 900 | 5.2 | 42 | 8 | 7.4 | 7.4 | 7.4 |
| Cut-off | Pulacayo | Category | k Tonnes | Ag g/t | Zn % | Pb % | Ag Moz | Ag Mlb | Pb Mlb | AgEq Moz | AgEq g/t | % Reported Ag |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 Ag g/t | Oxide In-Pit | indicated | 1,090 | 125 | 4.4 | 6% | ||||||
| Inferred | 25 | 60 | 0 | |||||||||
| 30 Ag g/t | Sulfide In-Pit | indicated | 24,6000 | 76 | 1.63 | 0.7 | 60.1 | 884 | 380 | 123.4 | 156 | 80% |
| Inferred | 745 | 82 | 1.79 | 0.61 | 2 | 29 | 10 | 3.9 | 164 | 164 | 164 | 164 |
| 100 Ag g/t | Sulfide Out-of-Pit | indicated | 660 | 268 | 1.35 | 0.44 | 5.7 | 20 | 6 | 6.5 | 307 | 14% |
| Inferred | 900 | 179 | 2.14 | 0.42 | 5.2 | 42 | 8 | 7.4 | 257 | 257 | 257 | 257 |
| Total: | indicated | 26,350 | 70.2 | 904 | 386 | 133.4 | 91% 9% | 91% 9% | ||||
| Inferred | 1,670 | 7.2 | 72 | 18 | 11.4 |
| Cut-off | Paca | Category | k Tonnes | Ag g/t | Zn % | Pb % | Ag Moz | Ag Mlb | Pb Mlb | AgEq Moz | AgEq g/t | % Reported Ag |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 Ag g/t | Oxide In-Pit | indicated | 1,095 | 185 | 6.5 | 19% | ||||||
| Inferred | 345 | 131 | 1.5 | |||||||||
| 30 Ag g/t | Sulfide In-Pit | indicated | 20,595 | 46 | 1.07 | 0.67 | 30.5 | 486 | 304 | 70.2 | 106 | 81% |
| Inferred | 3,050 | 46 | 0.76 | 0.65 | 4.5 | 51 | 44 | 9.2 | 94 | 94 | 94 | 94 |
| Total: | indicated | 21,690 | 37 | 486 | 304 | 70.2 | 86% 14% | 86% 14% | ||||
| Inferred | 3,395 | 6 | 51 | 44 | 9.2 |
Metal Content % | Ag $17/oz | Ag $25/oz | Ag $35/oz | Ag $50/oz |
|---|---|---|---|---|
| Ag | 45.2% | 54.8% | 63.0% | 70.8% |
| Zn | 38.8% | 32.0% | 26.3% | 20.7% |
| Pb | 15.9% | 13.1% | 10.8% | 8.5% |
**Visit company’s presentation**
Subscribeto receive Elephant news the moment it’s out by email for free

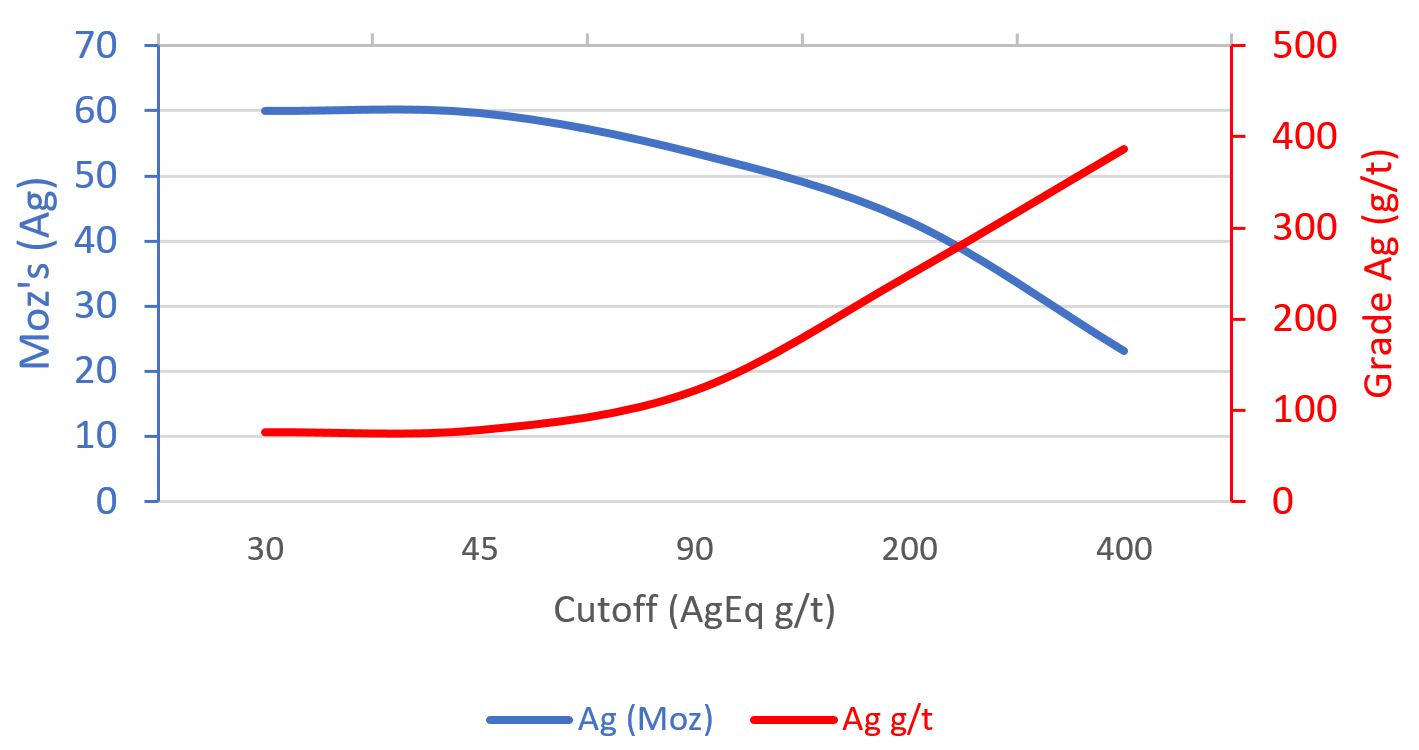

Pulacayo Indicated Silver Resource, Grade against Cutoff Grade (AgEq)
[
](https://www.silverelef.com/wp-content/uploads/2021/03/Pulacayo_22.March_.21-01.png)

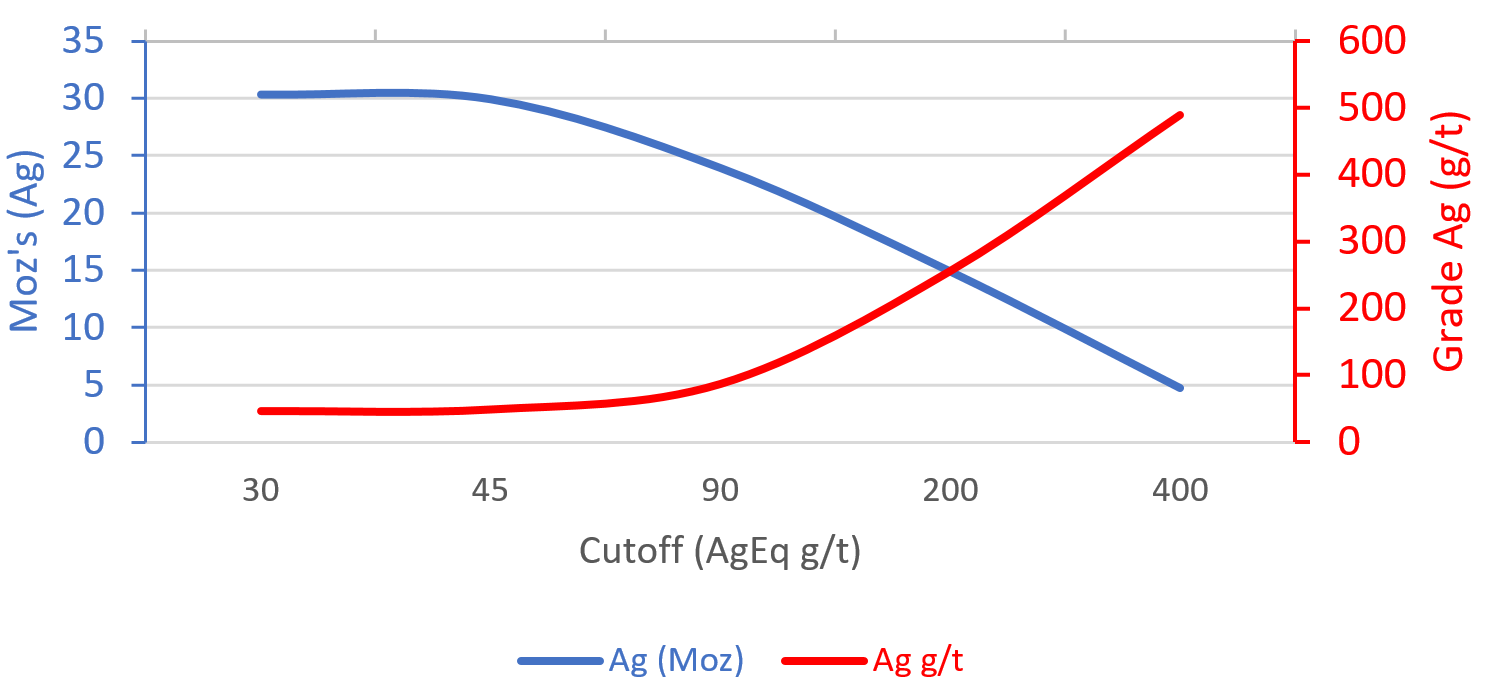

Paca Indicated Sulphide Silver Resource, Grade against Cutoff Grade (AgEq)
[
](https://www.silverelef.com/wp-content/uploads/2021/03/Pulacayo_22.March_.21-02.png)
- Ag Eq. = Silver Equivalent (Recovered) = (Ag g/t*89.2%)+((Pb%*(US$0.95/lb. Pb/14.583 Troy oz./lb./US$17 per Troy oz. Ag)*(10,000*91.9%))+((Zn%*(US$1.16/lb. Zn/14.583 Troy oz./lb./US$17 per Troy oz. Ag)*(10,000*82.9%)). Sulphide zone metal recoveries of 89.2% for Ag, 91.9% for Pb, and 82.9% for Zn were used in the Silver Equivalent (Recovered) equation and reflect metallurgical testing results disclosed previously for the Pulacayo Deposit. A metal recovery of 80% Ag was used for oxide zone Mineral Resources.
- Metal prices of US$17/oz Ag, US$0.95/lb Pb, and US$1.16 Zn apply. A currency exchange rate of CDN$1.00 to US$0.75 applies.
- Pit-Constrained Mineral Resources are defined for each deposit within optimized pit shells with average pit slope angles of 45⁰. The Pulacayo Deposit Mineral Resource Estimate was optimized at a 12.3:1 strip ratio and the Paca Deposit Mineral Resource Estimate was optimized with at a 4.3: strip ratio.
- Base-case sulfide zone pit optimization parameters include: mining at US$2.00 per tonne; combined processing and G&A at US$12.50 per tonne processed; haulage at US$0.50 per tonne processed for Pulacayo and US$2.00 per tonne processed for Paca.
- Base-case oxide zone pit optimization parameters include: mining at US$2.00 per tonne; combined processing and G&A at US$23.50 per tonne processed; haulage at US$0.50 per tonne processed for Pulacayo and US$2.00 per tonne processed for Paca.
- Pit-constrained sulphide zone Mineral Resources are reported at a cut-off grade of 30 g/t Ag Eq. within the optimized pit shells and pit-constrained oxide zone Mineral Resources are reported at a cut-off grade of 50 g/t Ag within the optimized pit shells. Cut-off grades reflect total operating costs used in pit optimization and are considered to define reasonable prospects for eventual economic extraction by open pit mining methods.
- Out of Pit Mineral Resources are external to the optimized pit shells and are reported at a cut-off grade of 100 g/t Ag Eq. They are considered to have reasonable prospects for eventual economic extraction using conventional underground methods such as long hole stoping based on a mining cost of $35 per tonne and processing and G&A cost of $20 per tonne processed.
- “Total” Mineral Resources for the Pulacayo Deposit Combined Pit-Constrained and Out-of-Pit Mineral Resource Estimate is the tonnage-weighted average summation of Pit-Constrained and Out-of-Pit Pulacayo Mineral Resources.
- “Total” Mineral Resources for the Pulacayo Project Mineral Resource Estimate is the tonnage-weighted average summation of total Pulacayo Deposit and Paca Deposit Mineral Resources.
- Mineral Resources were estimated using Ordinary Kriging methods applied to 1 m downhole assay composites capped at 2,300 g/t Ag, 13% Pb and 15% Zn.
- Bulk density was interpolated using Ordinary Kriging methods for Pulacayo Mineral Resources. An average bulk density of 2.32 g/cm3 or 2.24 g/cm3 was applied to Paca Mineral Resources based on grade domain solid models.
- Mineral Resources may be materially affected by environmental, permitting, legal, title, taxation, sociopolitical, marketing, or other relevant issues.
- Mineral Resource tonnages have been rounded to the nearest 5,000; totals may vary due to rounding.
Pulacayo is a past high grade (1,000g/t) underground mine (1800 to 1952), which is reconfigured as an open pit project. The tajo vein system extends to to surface
| hole N0 | from – to (m) | int (m) | Ag (g/t) | Pb (%) | Zn (%) |
|---|---|---|---|---|---|
| PUD005 | 96.2 – 108.0 | 11.9 | 689 | 1.9 | 1.4 |
| PUD007 | 70.0 – 96.8 | 26.8 | 517 | 2.3 | 4.2 |
| PUD057 | 374.0 – 378.0 | 4.0 | 1,184 | 0.8 | 2.3 |
| PUD069 | 281.0 – 294.0 | 13.0 | 624 | 2.1 | 4.2 |
| PUD109 | 293.6 – 298.4 | 4.8 | 3,607 | 3.8 | 4.1 |
| PUD134 | 128.2 – 151.5 | 23.3 | 514 | 1.3 | 1.9 |
| PUD150 | 290.0 – 302.0 | 11.2 | 882 | 0.4 | 0.6 |
| PUD159 | 343.0 – 354.0 | 11.0 | 790 | 0.6 | 0.6 |
| PUD170 | 237.0 – 239.0 | 2.0 | 3,163 | 0.1 | 0.9 |
Pulacayo Drill Results

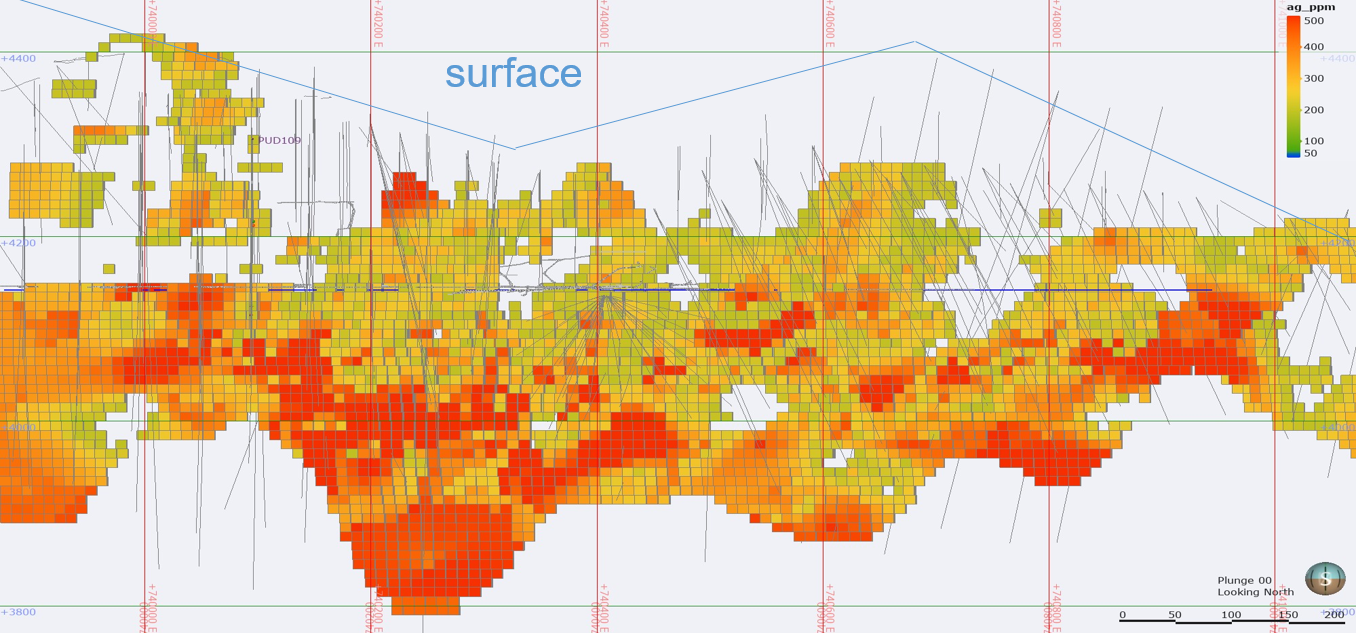

Pulacayo Long Section

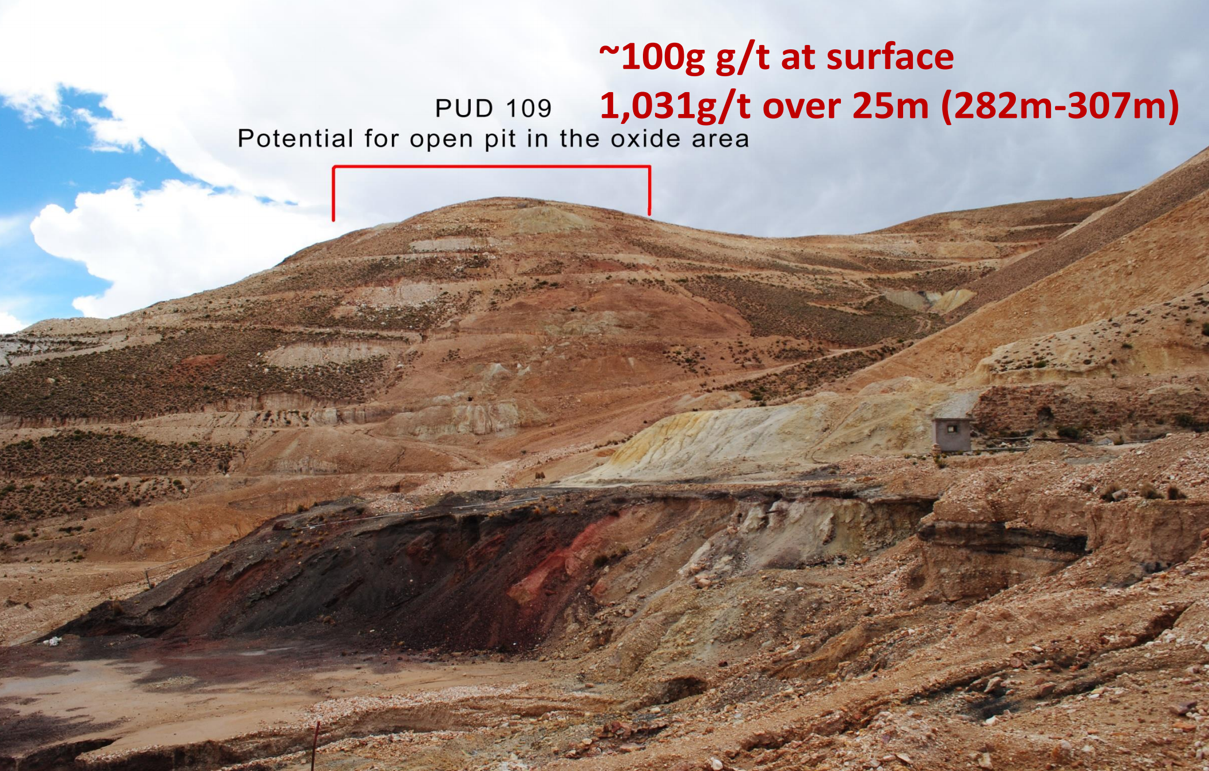

Pulacayo Surface

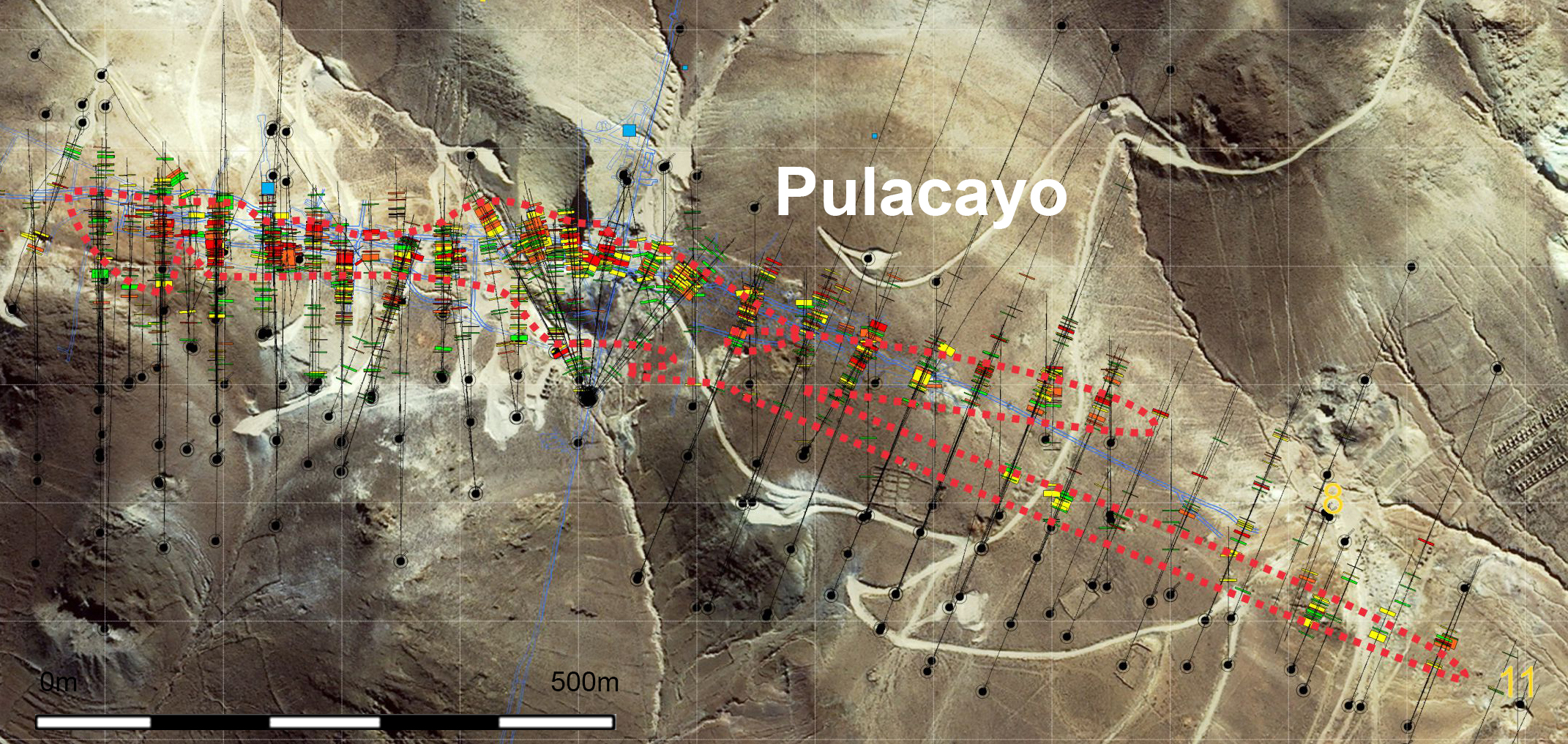

Pulacayo Plain Map
Reported results are do not define a mineral resource and it is uncertain if further exploration
will result in the delineation of mineral resource
**Visit company’s presentation**
Subscribeto receive Elephant news the moment it’s out by email for free
Pulacayo Geology
The Pulacayo and Paca Deposits are interpreted to be low-to-intermediate sulphidation epithermal deposits.
The Pulacayo Deposit occurs within the Tertiary age Pulacayo volcanic dome complex that consists of older sedimentary rocks of the Silurian Quenhua Formation and the intruding andesitic volcanic rocks of the Rothchild and Megacristal units. Mineralization hosted by volcanic rocks can be tens of meters in thickness and typically consists of discrete veins plus stockworks of narrow veins and veinlets that occur within argillic alteration host rock envelopes. Veins are commonly banded in texture and can contain semi-massive to massive sulphides. The primary minerals of economic importance at Pulacayo are tetrahedrite, galena and sphalerite. There are also silver sulfosalts and native silver which contribute to deposit silver grades. Mineralization is controlled by an east-west oriented normal fault system which links two northeast trending, steeply dipping, regional strike slip faults.
Historic Pulacayo mine production was predominantly from the Tajo vein system (TVS) which extends over a strike length of more than 2.5 km and down dip 1,000 meters. Resource drilling spans 1.4 km mineralized strike and extends down dip 400 meters from the surface. It covered an area that’s approximately 30% of TVS. There is the potential of discovering additional resources by drilling along the strike and at depth.
Paca Deposit
The Paca Deposit is located 7 km north of the Pulacayo Deposit.
Paca Deposit mineralization occurs at surface and has been defined to date to a maximum depth below surface of approximately 200 metres. The current near surface dimension of the Paca Deposit measures approximately 750 meters North-South by 750 meters East-West. The deposit includes a core zone of feeder-style mineralization associated predominantly with brecciated andesite, plus additional zones of shallowly dipping mantos-style mineralization that are hosted by the surrounding volcano-sedimentary sequence. Mineralization occurs in association with the same Tertiary age volcanic dome complex that produced the Pulacayo Deposit and takes the form of thin veinlets, fracture fillings and disseminations hosted by altered volcaniclastic sedimentary lithologies and altered intermediate to felsic igneous lithologies. The Paca Deposit remains open at depth and along the strike.
| hole N0 | from – to (m) | int (m) | Ag (g/t) | Pb (%) | Zn (%) |
|---|---|---|---|---|---|
| PND003 | 11.0 – 28.0 | 17.0 | 260 | 0.9 | 0.1 |
| PND008 | 18.0 – 33.5 | 15.5 | 314 | 1.0 | 0.4 |
| PND029 | 12.0 – 22.3 | 10.3 | 436 | 0.0 | 0.0 |
| PND031 | 0.0 – 37.0 | 37.0 | 217 | 0.9 | 0.3 |
| PND062 | 10.0 – 52.0 | 42.0 | 406 | 0.8 | 0.1 |
| ESM2 | 0.0 – 38.0 | 38.0 | 411 | 1.4 | 1.2 |
| PND110 | 16.0 – 28.0 | 12.0 | 1,085 | 0.7 | 0.0 |
Paca Drill Results

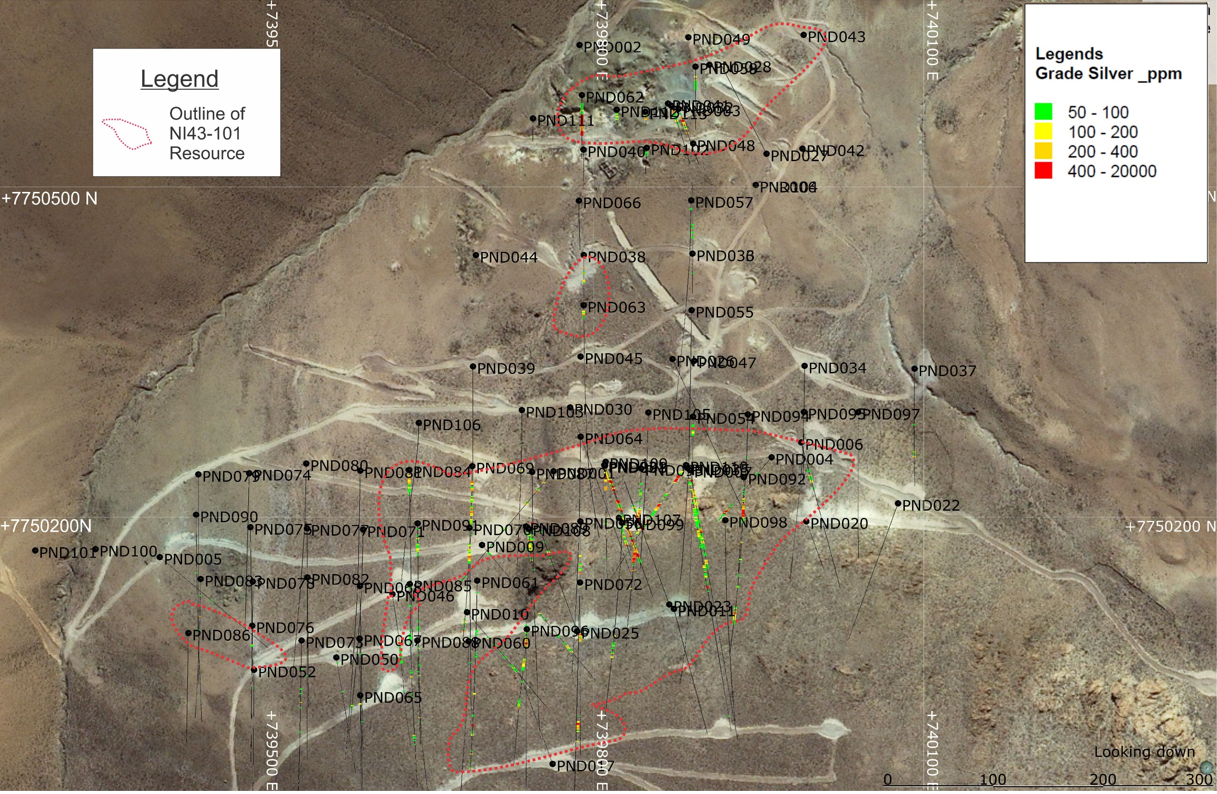

Paca Plain Map

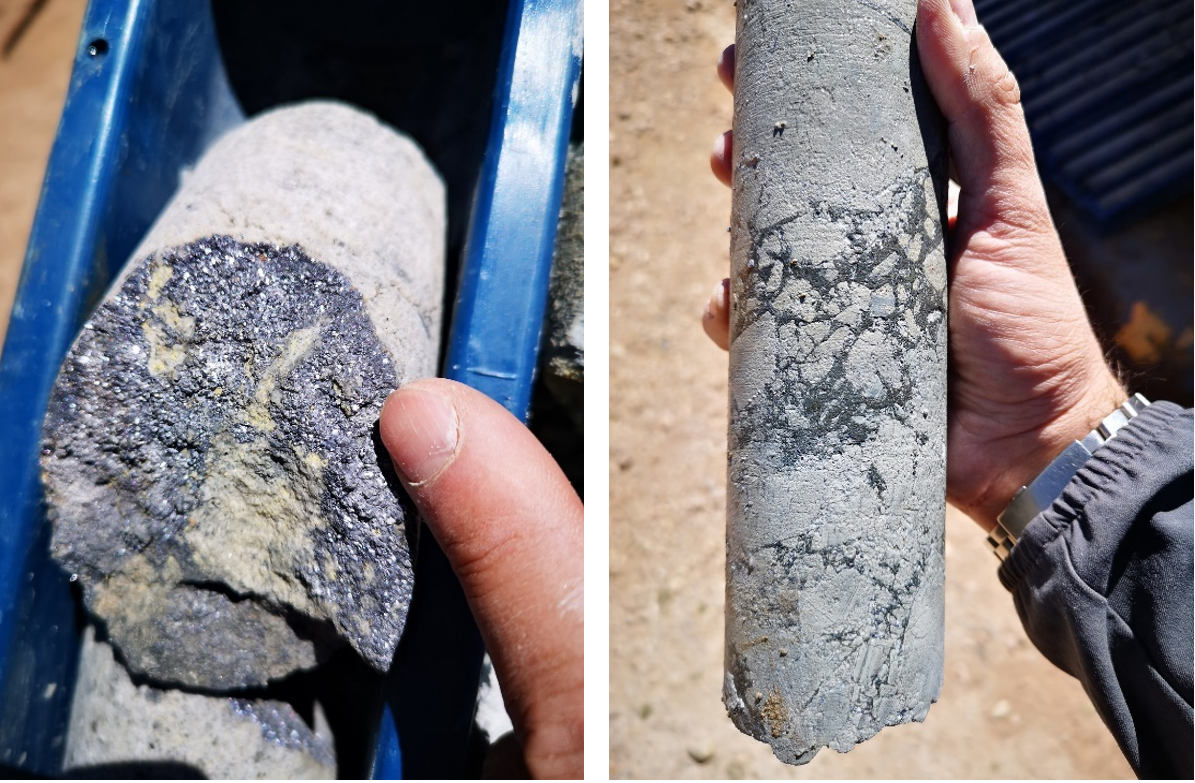

Paca Drill Cores

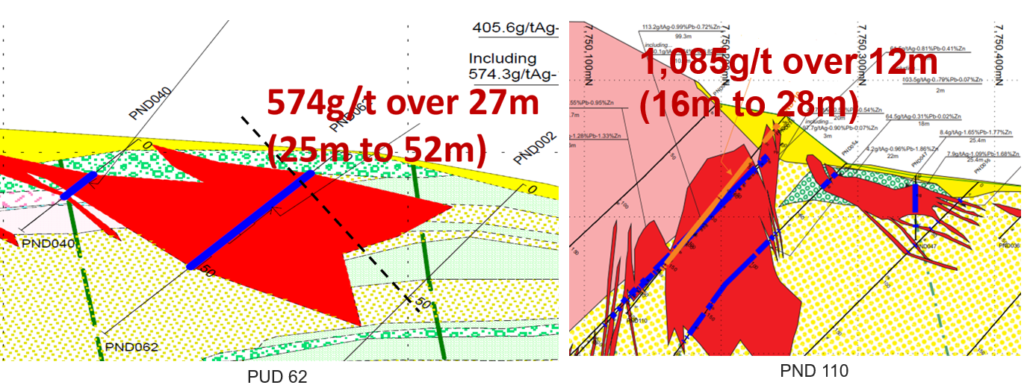

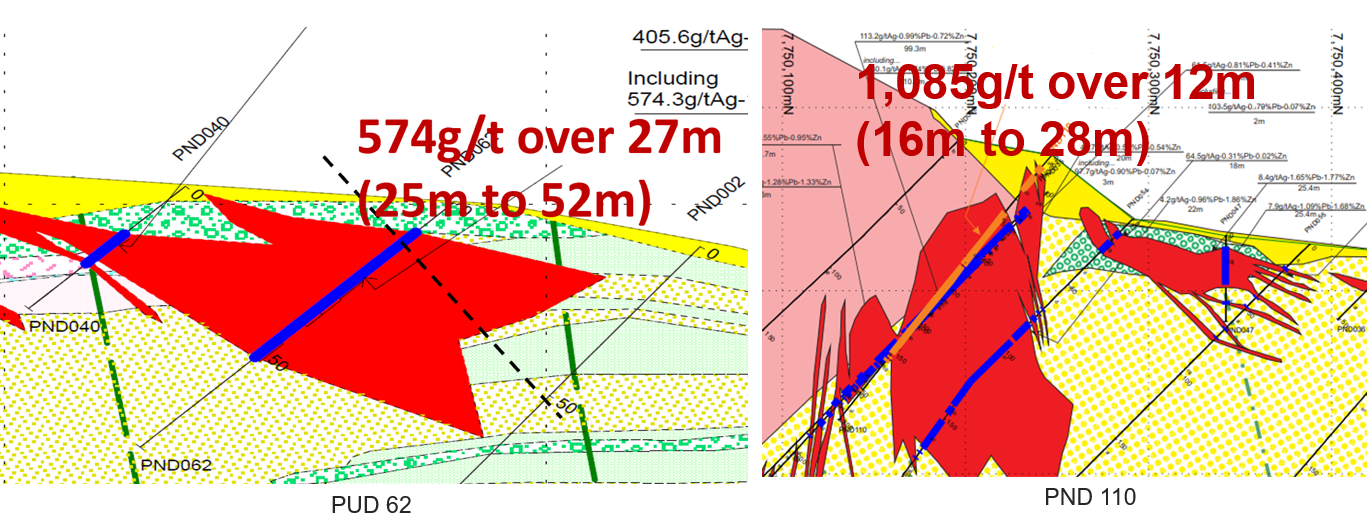

Paca Cross Sections
Regional Exploration Potential
Numerous prospective targets which exhibit mineralization expression on surface have been identified around and between the Pulacayo and Paca deposits. The Company has already commenced activities to explore these areas.
[
](https://www.silverelef.com/wp-content/uploads/2021/03/Pulacayo_22.March_.21-G02-Temp-1.jpg)

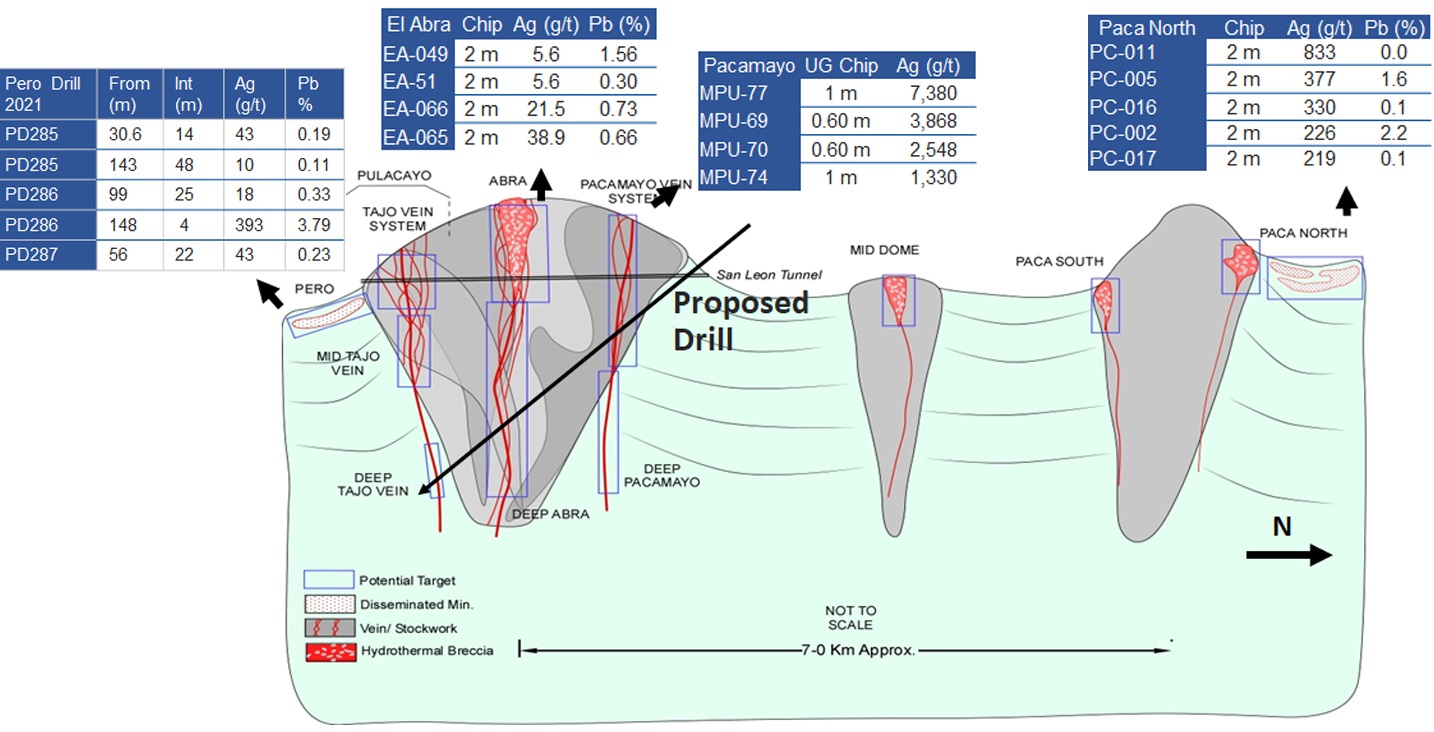

Pulacayo District Longitudinal Section
Exploration targets have insufficient eploration data
to define a mineral resource
Silver Elephant Remarks
Joaquin Merino, VP for South American Operation, commented: “With an Indicated Mineral Resource Estimate of 106.7 million oz of silver, 1,384.7 million pounds of zinc, and 693.9 million pounds of lead, and an Inferred Mineral Resource Estimate of 13.1 million oz of silver, 122.8 million pounds of zinc and 61.9 million pounds of lead, the Pulacayo Project should be recognized as a top-tier silver project with significant zinc and lead by-product credits. There is demonstrated potential for further resource expansion, and this overall large resource could eventually lead to a district-scale open-pit operation.”
**Visit company’s presentation**
Subscribeto receive Elephant news the moment it’s out by email for free
Qualified Persons
Mr. Harrington, P. Geo. of Mercator Geological Services Limited is responsible for disclosure regarding the Pulacayo Project Mineral Resource Estimate.
The technical contents of this news release have been prepared under the supervision of Danniel Oosterman, VP Exploration. Mr. Oosterman is not independent of the Company in that he is employed by it. Mr. Oosterman is a qualified person (“QP”) as defined by the guidelines in NI 43-101.
About Mercator
Mercator Geological Services Limited is a Canadian consulting firm founded in 1997 that offers a broad range of professional project management services including technical reporting to standards referenced in NI 43-101, exploration program management, and professional staffing for mineral exploration projects. Mercator prepared the Pulacayo deposit mineral resource estimations for Apogee Silver Ltd during the 2011 to 2013 period.
About Silver Elephant
Silver Elephant Mining Corp. is a premier silver mining company. The Company’s goal is to enable shareholders to own as much silver in the ground as possible.
